Brake Sets Caliper And Standard

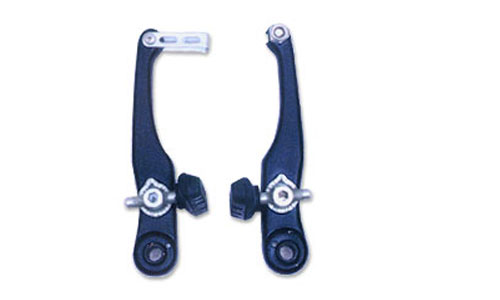

POWER BRAKE ( SS - 349 )

Click here to see full details

Specifications	A 80-90mm B 28-40mm L 116mm N.W.=228gm
Compatibility	Internal spring design. Power Brake for mudguard.
Finish	Rigid Steel arms. Available in Plated or Powder coated.

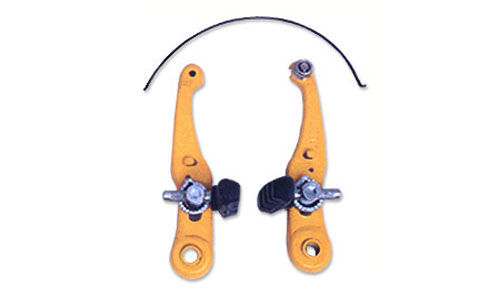

POWER BRAKE ( SS - 350 )

Click here to see full details

Specifications	A 80-90mm B 28-40mm L 98.16mm N.W.=109gm
Compatibility	Internal spring design. Power Brake for without mudguard only
Finish	Rigid Steel arms. Available in Powder coated.

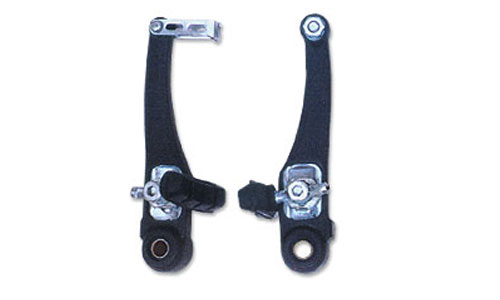

MOULDING ( SS - 351 )

Click here to see full details

Specifications	A 80-90mm B 28-40mm L 115.5mm N.W.=245gm
Compatibility	Internal spring. Power Brake for with mudguard.
Finish	Steel insert. Moulded.

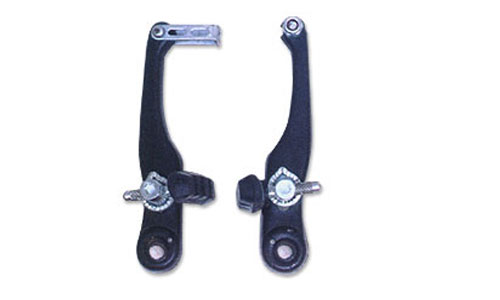

SHEET METAL ( SS - 352 )

Click here to see full details

Specifications	A 80-90mm B 28-40mm L 104mm N.W.=228gm
Compatibility	Internal spring. Power Brake for without mudguard.
Finish	Steel insert. Moulded.

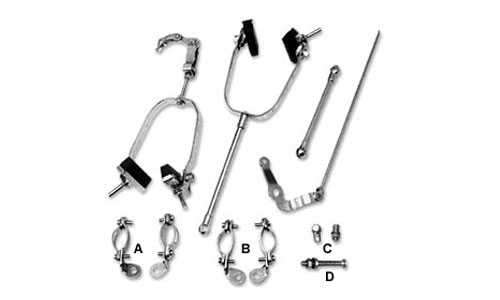

Standard BRAKES ( SS - 353 )

Click here to see full details

A	Brake clip front	C	Brake button
B	Brake clip rear	D	Frame Bolt

Complete brake set for 18"/20"/22"/24" made of selected material ZP and BCP finish front brake stirrup with long screw 7 nut L-Shape bell crank lever with long connected rod & adjuster bolt with nut and screw. Rear brake tube, Brake tightening bolt with nut & washer.

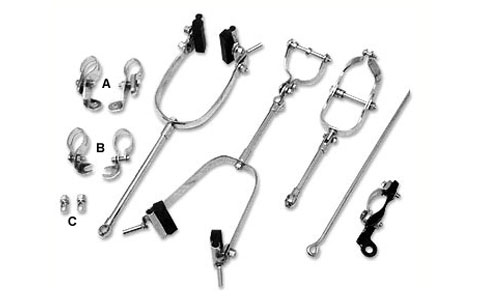

STANDARD BRAKES ( SS - 354 )

Click here to see full details

Complete brake set for 18"/20"/22"/24" frame made of selected material ZP and BCP finish front brake stirrup with tube, Rear brakes stirrup with tube, Rear Brake tube with tightening screw and bell crank one piece type with end pins. Bell crank pin with nut, washer and bottom bell crank with end pin.

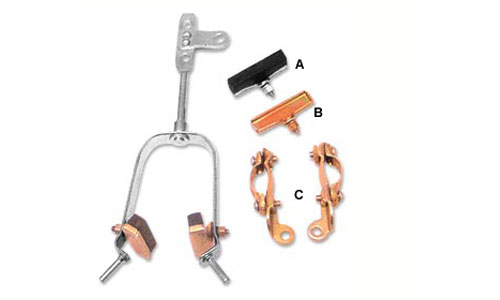

STANDARD BRAKES ( SS - 355 )

Click here to see full details

A	Rickshaw Heavy Duty Brake Shoe.
B	Brake Shoe Steel Block
C	Brake Button

Complete brake set made of selected material, with ZP and BCP finish along with accessories.
